| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | UL, IEC62619, MSDS, UN38.3 etc |
| Model Number: | Wheel stand 20 kwh |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Typical Voltage: | 48V/51.2V | Battery Type: | Top Quality LiFePO4 Battery |
|---|---|---|---|
| Typical Capacity: | 400Ah | Weight: | 200kgs |
| Battery Protection: | Smart BMS | Logo: | Accept Customized Logo On Battery |
| Battery Power: | 10kW | Design: | Finger Touch LCD |
| Warranty: | 10 Years | Dimension: | 920*730*220mm |
Home storage battery 20 kwh lithium batteries modular design wheel stand for hybrid off grid solar system
1. Features of 20 kwh home storage solar lithium ion battery:
* Advanced Internal modular structure design
* Long cycle life - product life expectancy of 15-20 years
* Expandable storage capacity as power needs increase.
* Intelligent integrated BMS and Proprietary architecture
* Fashion Finger touch LCD/Stable LCD with botton(optional)
* Flexible and convenient Wheel stand design
2. Specification of 51.2V 400Ah solar lifepo4 Battery
| No. | Item | General Parameter | Remark |
| 1.1 | Description | Home storage battery 20 kwh lithium batteries modular design wheel stand for hybrid off grid solar system | |
| 1.2 | Cell Type | Top quality electric vehicle grade LiFePO4 battery cell | |
| 1.3 | Typical Capacity | 400Ah | |
| 1.4 | Typical Voltage | 51.2V | |
| 1.5 | Typical power | 10kWh | |
| 1.6 | Inverter | SMA, Sol-ark, Deye, Schneider, Victron, Growatt, Goodwe, Solis, Solax, Sungrow, Luxpower, Infinisolar, Sermatec, Sofar, etc. | |
| 1.7 | Load power | 10kva | |
| 1.8 | Charging voltage | 53-55V | |
| 1.9 | End voltage | 40-44V | |
| 2.0 | Standard charge current | 80A | |
| 2.1 | Limiting current | 20A | |
| 2.2 | Max. continuous charge current | 200A | |
| 2.3 | Standard discharge current | 80A | |
| 2.4 | Max. continuous discharge current | 200A | |
| 2.5 | Cycle life | ＞6000 times | |
| 2.6 | Weight | 200kgs | |
| 2.7 | Dimension | 920*730*220mm | |
| 2.8 | Operation Temperature Range | Charge 0~45℃, Discharge -20~55℃ |
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!

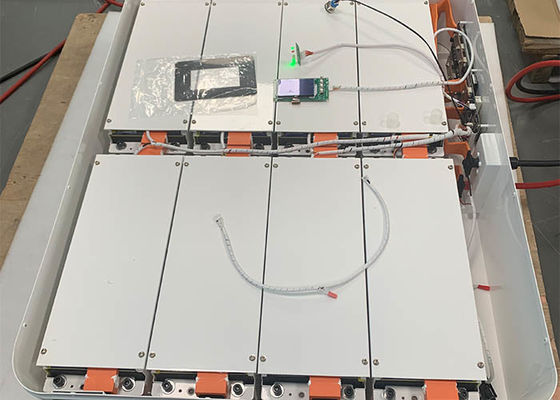

3. This module is built with 20kWh LiFePO4 battery and can be stand on ground, convenient to move, it is widely use for
* Home solar energy storage system, hospital, school, office space...
* Solar/wind energy storage system
* Solar battery backup
* On grid/off grid battery storage system
5. Home storage solar backup Battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. MAINTENANCE AND SECURITY
1. Use the unit properly to avoid electric shock.
2. Do not charge the unit with a charger that doesn’t match this product.
3. Do not dispose of it in fire.
4. Do not place or store the unit together with bulk metal objects.
5. Do not store the unit for a long time under power loss.
6. Do not cover the unit with towels, clothing and other items, so as not to affect heat dissipation.
7. Do not connect the unit with a charger for a long time.
