LiFePO4 48v battery

LiFePO4 48v battery
LiFePO4 48v battery
LiFePO4 48v battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: IEC62619, ROHS, UN38.3, MSDS etc
Model Number: PAC battery 48v 80Ah
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Battery Type: LiFePO4 Battery Color: Black
Alarm Indicator: Yes Nominal Voltage: 48V
Battery Application: Solar Solar Energy Storage Capacity Display: LED Indicator
Warranty: 3 Years Cycle Life: More Than 2000 Times
High Light:

long life solar battery


solar lithium battery pack

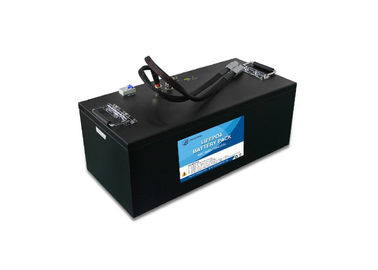

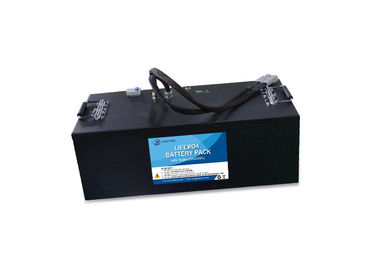

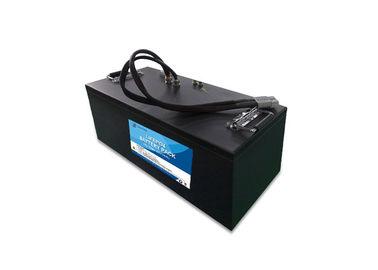

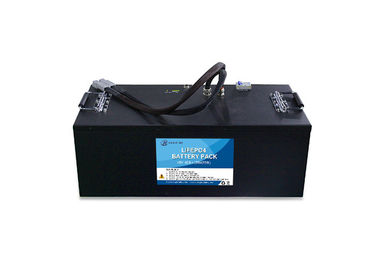

LiFePO4 48v solar battery 80Ah black color with capacity indicator

1. Instruction of 48V solar battery 80Ah

The 48v 80Ah battery is using deep cycle lithium iron phosphate battery cell and built-in smart battery management system with alarm function, capacity indicator and air switch for dual protection. The battery case is in black color. The battery color can be customized as per your requirements. This 48v battery pack can be used for solar energy storage system for many industires. It uses high quality Anderson connector for quick plug in and is safe for charging and discharging.

2. Transportation of LiFePO4 48V solar battery 80Ah

1) Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.

2) Battery should be stayed in the warehouse 15℃~35℃ where it’s dry, clean, shade, and well-ventilated.

3) The battery should be stored in 50% SOC during transportation.

4) The battery need to be charged every 6 months if out of use.

5) Keep the battery against dropping, turning over and serious stacking during loading


3. LiFePO4 48V 80Ah battery Specification(@Battery initial Temp25±5℃)

NO Items Description
Normal Specification
1 Nominal Voltage 48V (LFP-15S)
2 Normal Capacity 80Ah
3 Internal Resistance ≤45mΩ @1kHz AC
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 54.75±0.2V
6 Recommended float charge voltage(for Standby use) 52±0.2V
7 Allowed MAX charge current 80A@Battery initial Temp 25±5℃
8 Recommended charge current ≤40A
Standard Discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output voltage range 37.5~54.75V
11 Allowed discharge current 80A
12 Pulse discharge current 300A withstand 3s
13 Discharge cut-off voltage 37.5~42V
Mechanical Characteristics
14 Weight About: 48±0.5Kg
15 Storage Temperature & Humidity Range Short: within one month -20~+ 60℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
16 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;


4. BMS specification of LiFePO4 battery 48v 80Ah

The BMS is designed for 15/16 series lithium battery.

The BMS have all functions which are:

  • overcharge detection function
  • over discharge detection function
  • over current detection function
  • short detection function
  • Temperature detection function
  • balance function
  • communicate function
  • Alarm function
  • Total capacity function
  • Storage history function

5. 48V 80Ah solar battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

LiFePO4 48v battery 0

6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
