Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/OEM |
Certification: | UL, IEC62133, MSDS, UN38.3 |
Model Number: | 6.4V 12Ah LiFePO4 polymer battery |
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 3-15 days for samples, 7-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Typical Voltage: | 6.4V | Typical Capacity: | 12Ah |
---|---|---|---|
Battery Cell: | IFR32650 6000mAh 3.2v | Battery Cycle: | More Than 2000 Times |
Pack: | Shrink Wrap In Blue Color | BMS: | Built In |
For more SLA Replacement battery, please find below our battery model list:
SLA replacement battery model list-PAC Tech.pdf

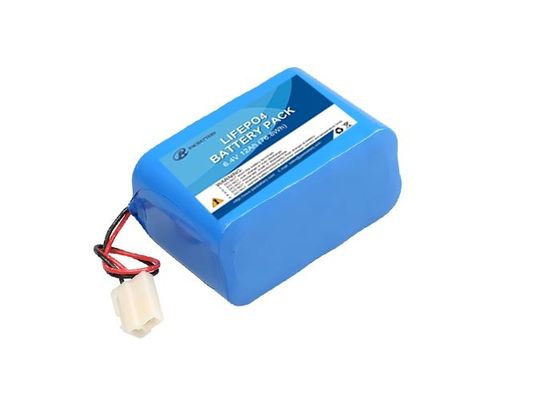

Long cycle life 6.4V 12Ah LiFePO4 polymer battery, LiFePO4 rechargeable battery:
The long cycle life 6.4V 12Ah LiFePO4 polymer battery is manufactured by PAC Technology Co.,Ltd, using high capacity 3.2v 6000mAh 32650 lithium iron phosphate battery cell, 2S2P assembled, to provide 76.8Wh power. It can be used for industrial equipment to replacement the lead acid battery.
6.4V 12Ah LiFePO4 polymer battery Specification(@Battery initial Temp25±5℃)
Electrical Characteristics | Nominal Voltage | 6.4V |
Nominal Capacity | 12Ah@0.2C | |
Energy | 76.8Wh | |
Internal Resistance | ≤80mΩ | |
Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. | |
Months Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charge | Charge Voltage | 7.3±0.1V |
Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 7.3V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 7.3V until the current was not more than 0.02C5A. | |
Charger Current | 2.4A | |
Max.Charge Current | 6.0A | |
Standard Discharge | Discharge Current | 2.4A |
Max. Continuous Current | 12A | |
Max.Pulse Current | 20A(<3S) | |
Disxcharge Cut-off Voltage | 5.0V | |
Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | IFR32650 2S2P |
Case Material | Shrink wrap with blue color | |
Dimension(L*W*H*TH) |
90*70*101*107mm |
|
Weight | Approx. 0.75kgs | |
Terminal | F2 |
Note: If above specification can't satisfy you, please contact us for your detailed requirement.
We could make customized LiFePO4 polymer battery based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..
Features of 6.4V 12Ah LiFePO4 polymer battery:
LiFePO4 polymer battery cylindrical cell 18650, 26650, 32650, 32700 Manufaturing- Work Shop:
Delivery of 6.4V 12Ah LiFePO4 polymer battery:
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
