Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/ODM |
Certification: | IEC62133, UN38.3, MSDS |
Model Number: | 32650-6000mAh |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | White inner box, standard export carton |
Delivery Time: | 3-10 days for samples, 15-35 days for mass production |
Payment Terms: | T/T |
Supply Ability: | 100,000pcs/day |
Type: | Lithium Iron Phosphate Battery | Cell Model: | 32650 |
---|---|---|---|
Nominal Voltage: | 12.8V | Nominal Capacity: | 12Ah |
Items: | Long Cycle Life 12.8V 12Ah LiFePO4 Lithium Battery | Application: | Solar Product |
Keywords: | Long Cycle Life 12.8V 12Ah, 12.8V 12Ah LiFePO4, LiFePO4 Lithium Battery | Protection: | Built-in PCM |
Certificate: | IEC62133, UN38.3, MSDS | Cycle: | 2000 Times |
High Light: | deep cycle rechargeable battery,solar lithium battery pack |

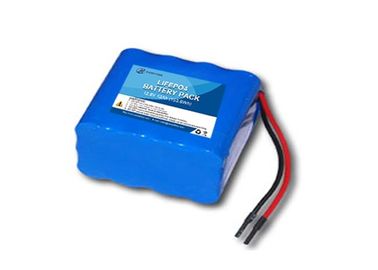

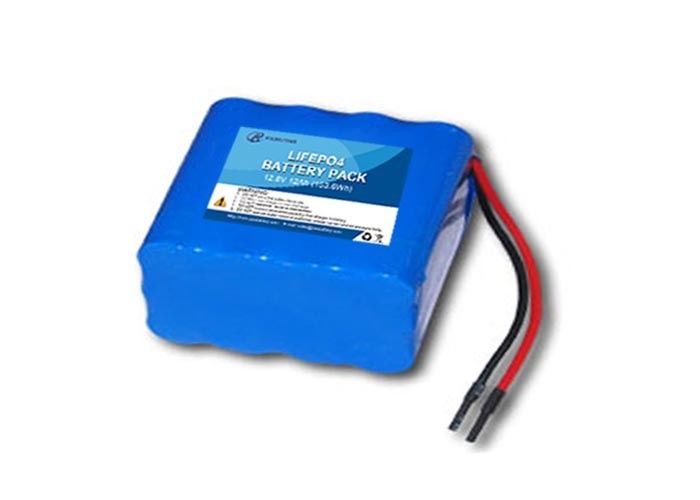

Long cycle life 12.8V 12Ah LiFePO4 lithium battery made of 4S2P 32650 cells, with long life cycle, high safety, light weight, standard size.
The energy density of 32650 LiFEPO4 battery (high safety) exceeds 170wh/kg, the completed engineering sample hit 200wh/kg now is verified the mass production process, 3C charge and discharge reached 3000 times
Features of 12.8V 12Ah LiFePO4 lithium battery:
No.
|
Item
|
General Parameter
|
1.1
|
Description
|
12.8V 12Ah LiFePO4 lithium battery
|
1.2
|
Cell Model
|
32650-6000mAh
|
1.3
|
Typical Capacity
|
12Ah |
1.4
|
Typical Voltage
|
12.8V
|
1.5
|
End of Charge Voltage
|
15.6V
|
1.6
|
Charge Current
|
0.2C
|
1.7
|
Charging time
|
5-6 Hours
|
1.8
|
End discharge Voltage
|
8.0V
|
1.9
|
Max continuous charge current
|
12A
|
2
|
Maximum Peak Discharging Current
|
24A (less than 3S)
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
2.2
|
Over-Current Discharge Protection
|
12A
|
2.3
|
Short circuit protection
|
With protection
|
2.4
|
Dimension
|
132*70*73mm
|
2.5
|
Weight
|
1.50kgs
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
PAC BATTER advantage:
Safety is highly reliable, pass the IEC62133 test and IEC61960, UN38.3 test.
Low local action battery, the charge retention reached 92% after 1 year, 80% after 3 years and 75% after 6 years.
Working temperature range is from -40 degree to + 75 degree, can be operated in bad condition.
Hi-Capacity battery charge/discharge reached 30C in maximum.
The highly automated equipment is in the lead in China.
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
PAC BATTERY provide One-stop solution:
Lithium battery cell manufacturing, prismatic shape and other special shap battery, curved battery.
Cylindrical Li ion battery cell manufacturing, 18650, 26650, 14500, 32650, 32700
Battery management system (BMS) design, PCM, PCB, production is done in-house
Plastic tooling, injection is done in-house
Battery packing is done in-house
Why Choose Us:
Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
Taking responsibility -- Pac members to proactively take responsibility, we always offer the best solution to our customers.
