| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 32650-6Ah |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton |
| Delivery Time: | 3-20 days for samples, 15-35 days for mass production |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/day |
| Features: | Deep Cycle Battery 12V | Type: | LiFePO4 Rechargeable Battery |
|---|---|---|---|
| Cell Model: | 32650 | Nominal Voltage: | 12.8V |
| Nominal Capacity: | 42Ah | Items: | 42Ah 12volt LiFePO4 Battery Rechargeable Made Of 32650 Cells |
| Application: | Solar Energy | Certificate: | IEC62133, UN38.3, MSDS |
| Cycle: | 2000 Times | Oem/odm: | Negotiable |
| High Light: | 32650 lifepo4 battery,long cycle battery |
||

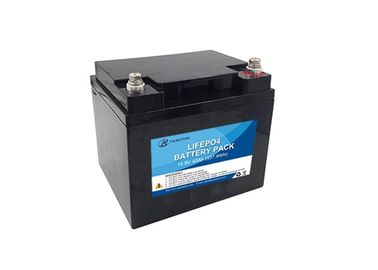

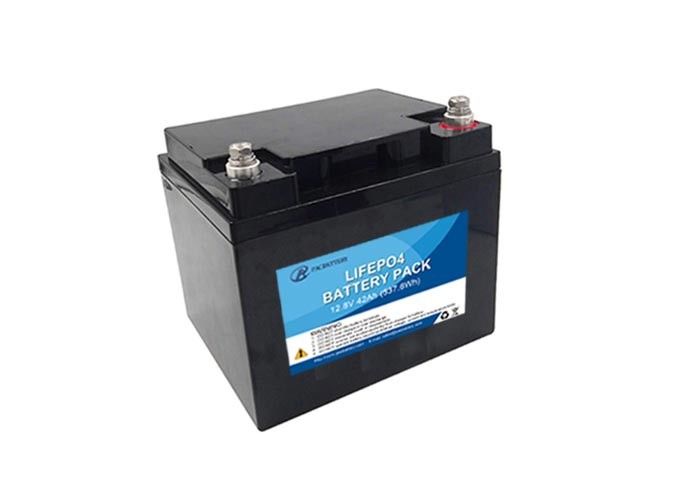

42Ah 12volt LiFePO4 rechargeable battery made of 32650 cells, with the features of long life cycle, high safety, light weight, standard size.
Technical information for 42Ah 12volt LiFePO4 rechargeable battery:
|
No.
|
Item
|
General Parameter
|
|
1.1
|
Description
|
42Ah 12volt LiFePO4 rechargeable battery
|
|
1.2
|
Cell Model
|
32650-6000mAh
|
|
1.3
|
Typical Capacity
|
42Ah |
|
1.4
|
Typical Voltage
|
12.8V
|
|
1.5
|
End of Charge Voltage
|
15.6V
|
|
1.6
|
Charge Current
|
0.2C
|
|
1.7
|
Charging time
|
5-6 Hours
|
|
1.8
|
End discharge Voltage
|
8.0V
|
|
1.9
|
Max continuous charge current
|
84A
|
|
2
|
Maximum Peak Discharging Current
|
200A (less than 3S)
|
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
|
2.2
|
Over-Current Discharge Protection
|
84A
|
|
2.3
|
Short circuit protection
|
With protection
|
|
2.4
|
Dimension
|
80*145*325mm |
|
2.5
|
Weight
|
5.5kgs
|
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
Note:
If above specification can't satisfy you, please contact us for your detailed requirement.
We could make customized 12volt LiFePO4 rechargeable battery pack for you based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..
The Features of 42Ah 12volt LiFePO4 rechargeable battery:
Output with high efficiency
Good performance under wide temperature -20-60℃.
Good safety performance
Long cycle life time, over 2000 cycle times(100%DOD).
Fast charging.
Low self-discharge.
Evironment friendly.
Application for 42Ah 12volt LiFePO4 rechargeable battery:
UPS
Solar &Wind power system
Golf Cart
Electric vehicle , E-bike, E-rickshaw
Advantage of 12volt LiFePO4 rechargeable battery, Comparing to Lead Acid Battery
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ‘drop in’ replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.
