Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/OEM |
Certification: | MSDS, UN38.3, CE, ROHS |
Model Number: | 25.6V 6Ah lithium iron phosphate battery |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
OEM/ODM: | Acceptable | Cell Model: | 32650 Battery |
---|---|---|---|
Warranty: | 1 Year | House Material: | Plastic ABS |
Weight: | About 1.55kgs | Pulse Current: | 20A(<3s) |
Temperature Protection: | Negotiable | Dimension: | 151*98*95mm |
Cell Type: | Cylindrical Battery | Battery Combination: | 8S1P |
High Light: | 32650 lifepo4 battery,long cycle battery |

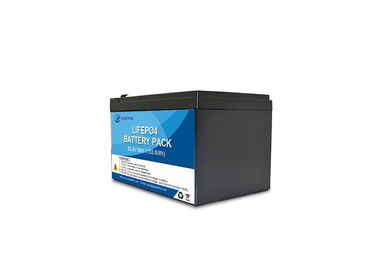

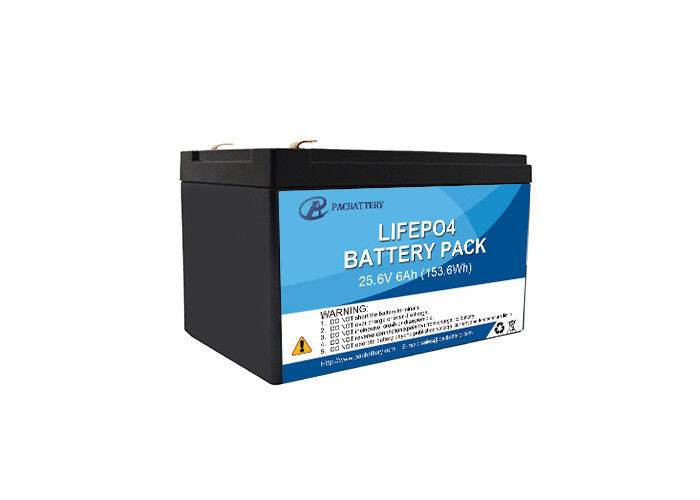

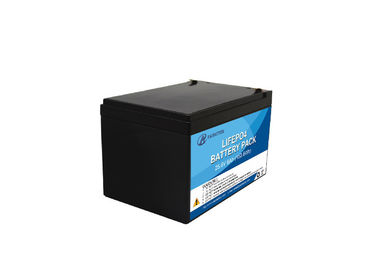

Cylindrical 32650 battery pack 25.6V 6Ah lithium iron phosphate cell 8s1p
1. Instruction of 25.6V 6Ah battery pack
The 25.6V 6Ah lithium iron phosphate battery is using cylindrical 32650 battery cell and 8s1p assembled with protection circuit. The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during battery charge & discharge, to prevent the 25.6V 6Ah battery pack from overcharge, over discharge, short circuit and over current. The protection circuit helps to ensure safe and accurate running of the lithium battery pack.
2. Transport Information of 32650 battery pack
Lithium batteries is classified to Lithium Ion Batteries(including lithium ion polymer batteries) and Lithium Metal Batteries(including lithium alloy batteries).
Lithium batteries shipped as"Lithium batteries", "Lithium batteries packed with equipment", or "Lithium batteries contained in equipment" may not be classified as "Dangerous Goods" when shipped in accordance with "PI965-970 section || of IATA-DGR" or "special provision 188 of IMO-IMDG Code"
3. Test conditions of Vibration
A full-charged cell is to be subjected to simple harmonic motion with amplitude of 0.8mm total maximum excursion. The frequency is to be varied at the rate of 1 hertz per minute between 10 and 55 hertz. After the test is completed, And the cell returned to the starting position. The cell shall be vibrated for 90~100 minutes per axis of XYZ axes. The samples should be observed for 6 hours after the test,and also check the weight loss of cells before and after the test.
4. Specification of 8s1p cylindrical 32650 battery pack(@Battery initial Temp25±5℃)
Electrical Characteristics | Nominal Voltage | 25.6V | |
Nominal Capacity | 6Ah@0.2C | ||
Energy | 153.6Wh | ||
Internal Resistance | ≤70mΩ | ||
Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. | ||
Months Self Discharge | ≤3.5% per month at 25℃ | ||
Standard Charge | Charge Voltage | 29.2±0.2V | |
Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C, and then, changed continuously with constant voltage of 29.2V until the current was not more than 0.02C. | ||
Charger Current | 1.2A | ||
Max.Charge Current | 3A | ||
Standard Discharge | Discharge Current | 1.2A | |
Max. Continuous Current | 6A | ||
Max.Pulse Current | 20A(<3S) | ||
Disxcharge Cut-off Voltage | 20.0V | ||
Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | ||
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||
Water Dust Resistance | IP56 | ||
Mechanical | Cell & Method | IFR32650 N60, 8S1P | |
Plastic Case | ABS | ||
Dimension(L*W*H*TH) | 151*98*95*101mm | ||
Weight | Approx. 1.55kgs | ||
Terminal | F2 |
5. Delivery of Cylindrical 32650 battery pack
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
