| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 32650-6Ah |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton |
| Delivery Time: | 3-20 days for samples, 15-35 days for mass production |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/day |
| Type: | LiFePO4 Rechargeable Battery | Cell Model: | 32650 |
|---|---|---|---|
| Nominal Voltage: | 12.8V | Nominal Capacity: | 300Ah |
| Items: | Long Cycle Battery 12V 300Ah LiFePO4 Battery For Caravan | Application: | Solar Energy |
| Certificate: | IEC62133, UN38.3, MSDS | Cycle: | 2000 Times |
| Oem/odm: | Negotiable | Keywords: | Long Cycle Battery, 12V 300Ah, 300Ah LiFePO4 Battery |
| High Light: | 32650 lifepo4 battery,12v battery pack |
||
Assembled by 32650 6Ah lifepo4 cells, 4S50P, 12V 300Ah LiFePO4 Battery Pack, widely use for
* Caravan,
* UPS/ power back up,
* Electric golf cart,
* Electric-bike,
* Electric scooter.
* Electric Fishing machine.

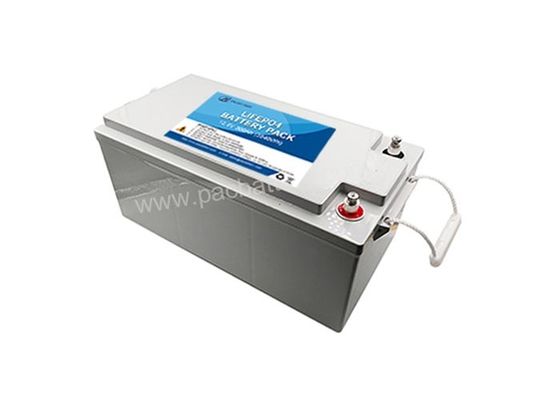

Long cycle battery 12V 300Ah LiFePO4 battery for Caravan, with the features of long life cycle, high safety, light weight, standard size.
The energy density of 32650 LiFEPO4 battery (high safety) exceeds 170wh/kg ,the completed engineering sample hit 200wh/kg now is verified the mass production process,3C charge and discharge reached 3000 times
Technical information for 12V 300Ah LiFePO4 battery:
|
No.
|
Item
|
General Parameter
|
|
1.1
|
Description
|
12V 300Ah LiFePO4 battery
|
|
1.2
|
Cell Model
|
32650-6000mAh
|
|
1.3
|
Typical Capacity
|
300Ah |
|
1.4
|
Typical Voltage
|
12.8V
|
|
1.5
|
End of Charge Voltage
|
15.6V
|
|
1.6
|
Charge Current
|
0.2C
|
|
1.7
|
Charging time
|
5-6 Hours
|
|
1.8
|
End discharge Voltage
|
8.0V
|
|
1.9
|
Max continuous charge current
|
100A
|
|
2
|
Maximum Peak Discharging Current
|
200A
|
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
|
2.2
|
Over-Current Discharge Protection
|
200A
|
|
2.3
|
Short circuit protection
|
With protection built in
|
|
2.4
|
Dimension
|
520*269*220mm |
|
2.5
|
Weight
|
39kgs
|
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
Note:
If above specification can't satisfy you, please contact us for your detailed requirement.
We could make customized LiFePO4 battery 12V based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..
12V 300Ah LiFePO4 battery application for residential energy storage:
Advantage of LiFePO4 battery 12V 300Ah, Comparing to Lead Acid Battery
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ‘drop in’ replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.
